by Burlington
Save £137.00
Original price
£712.00
Current price
£575.00
CODE: B1 1TH+T22A CHR
Description
Illustrated Code

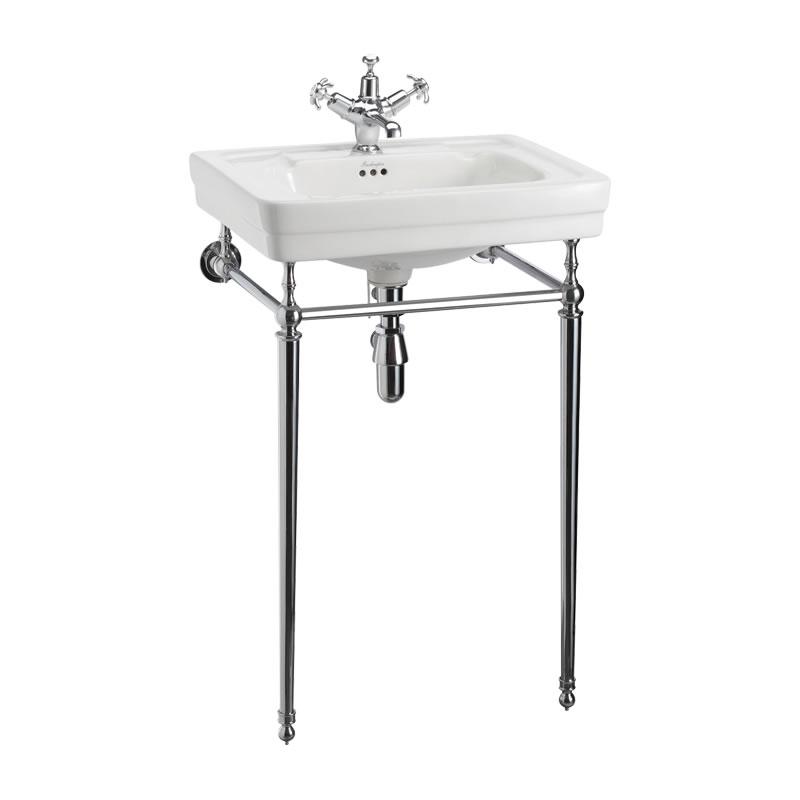

B1 1TH+T22A CHR- B1 1TH: Contemporary basin 575mm 1TH
- T22A CHR: 56cm/58cm basin wash stand chrome
- T22A CHR: 56cm/58cm basin wash stand chrome
- B1 2TH: Contemporary basin 575mm 2TH
- B1 3TH: Contemporary basin 575mm 3TH
- T22A CHR: 56cm/58cm basin wash stand chrome
Additional Information
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap.
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code.
Guarantee
25 years domestic installations1 year commercial installations
Standards Information
BS EN 14688:2006 Sanitary appliances. Wash basins. Functional requirements and test methodsBS EN 31:2011 Pedestal wash basins. Connecting dimensions
Tap Hole Options
Available with one (1TH), two (2TH) or three (3TH) tap holes
Compatible Products
- W1: Basin plug and chain
- W11: "Click-Clack" Basin waste slotted
- W18: Flip-Top basin waste slotted

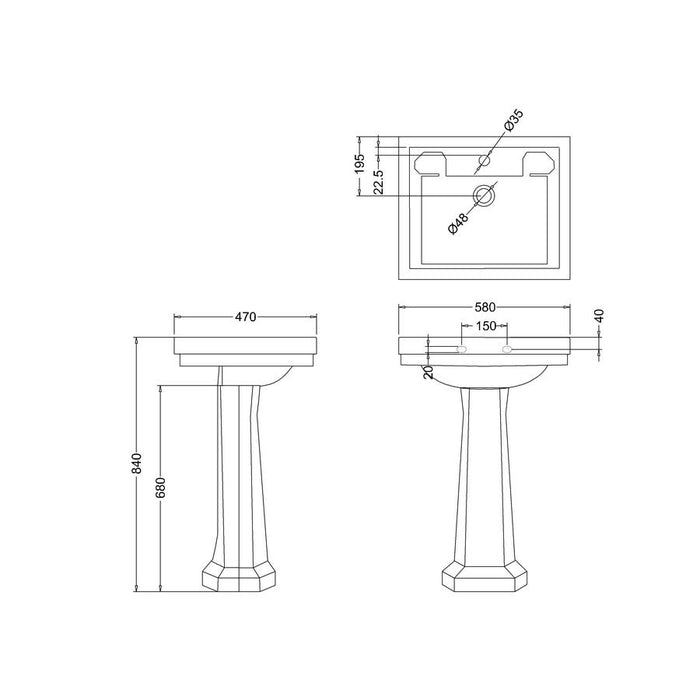

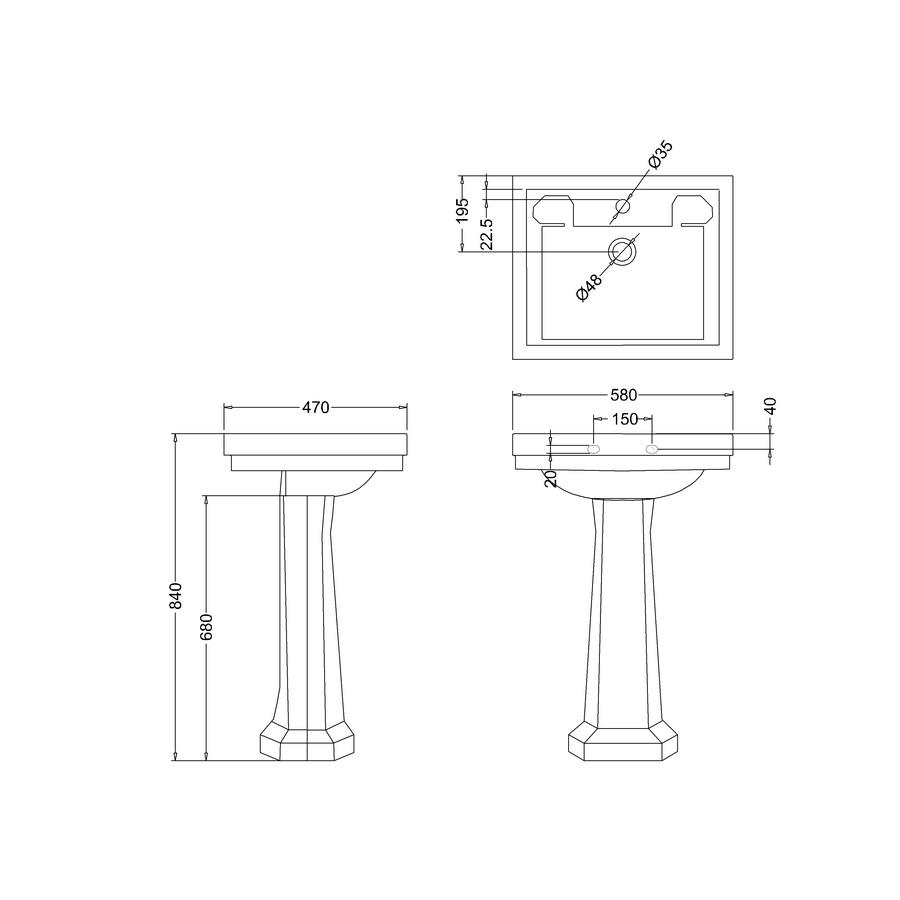

Specification
Product Type | Traditional |
Overall height | 84cm |
Basin size | w 57.5cm x d 47cm |
Material | B1 1TH: Basin - Vitreous china P1: Pedestal - Vitreous china P8: Pedestal - Vitreous china P9: Pedestal - Vitreous china T22A CHR: Wash stand - Brass T2 CHR: Towel rail - Brass |
Size | B1 1TH: 585 x 200 x 470mm P1: 290 x 680 x 250mm P8: 217 x 391 x 297mm P9: 284 x 725 x 250mm T22A CHR: 475 x 377 x 785mm T2 CHR: 505 x 94 x 80mm |
Nett Weight | B1 1TH: Basin - 16.2kg P1: Pedestal - 11.36kg P8: Pedestal - 8.6kg P9: Pedestal - 13.85kg T22A CHR: Wash stand - 3.4kg T2 CHR: Towel rail - 0.5kg |
Gross Weight Including Packaging | B1 1TH: Basin - 18.35kg P1: Pedestal - 13.3kg P8: Pedestal - 9.5kg P9: Pedestal - 15.45kg T22A CHR: Wash stand - 4.1kg T2 CHR: Towel rail - 0.75kg |
Packed Dimension | B1 1TH: 615 x 495 x 230 = 0.07 m3 P1: 315 x 275 x 710 = 0.0615 m3 P8: 322 x 242 x 416 = 0.0324 m3 P9: 280 x 315 x 740 = 0.0653 m3 T22A CHR: 710 x 300 x 125 = 0.0266 m3 T2 CHR: 535 x 125 x 100 = 0.0067 m3 |
Colour | B1 1TH: Basin - White P1: Pedestal - White P8: Pedestal - White P9: Pedestal - White T22A CHR: Wash stand - Chrome plated T2 CHR: Towel rail - Chrome plated |
Barcode | B1 1TH: 5055806001145 T22A CHR: 5055806006959 B1 2TH: 5055806001152 B1 3TH: 5055806001169 |
Packed Dimension | B1 1TH: 615 x 495 x 230 = 0.07 m3 P1: 315 x 275 x 710 = 0.0615 m3 P8: 322 x 242 x 416 = 0.0324 m3 P9: 280 x 315 x 740 = 0.0653 m3 T22A CHR: 710 x 300 x 125 = 0.0266 m3 T2 CHR: 535 x 125 x 100 = 0.0067 m3 |
Colour | B1 1TH: Basin - White P1: Pedestal - White P8: Pedestal - White P9: Pedestal - White T22A CHR: Wash stand - Chrome plated T2 CHR: Towel rail - Chrome plated |
