Burlington High-Level Pan with High-Level Cistern and Flush Pipe Kit

by Burlington
Save £235
£939.00
£704.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

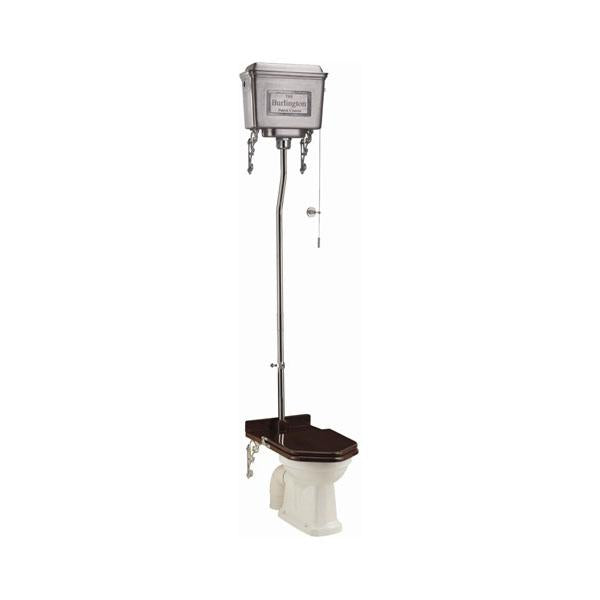

T58 ALU+T30 CHR+P2
  • T58 ALU: Brushed aluminium high level cistern including cistern fittings
  • T30 CHR: High level flush pipe kit including lever, rigid pull chain, flush pipes, reverse screw cistern connector, stopper and ornate brackets
  • P2: Low/high level pan

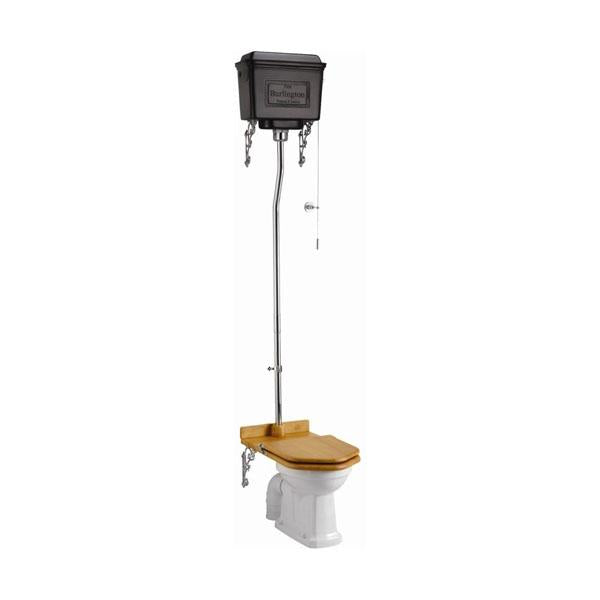

T60 BLA+T30 CHR+P2
  • T60 BLA: Black aluminium high level cistern including cistern fittings
  • T30 CHR: High level flush pipe kit including lever, rigid pull chain, flush pipes, reverse screw cistern connector, stopper and ornate brackets
  • P2: Low/high level pan

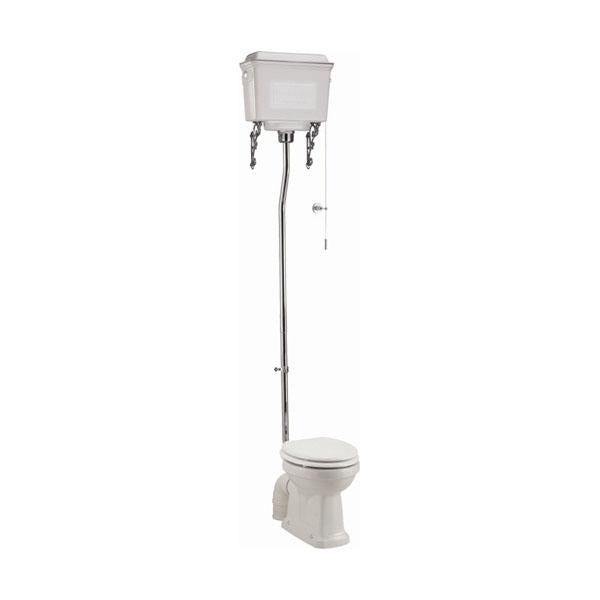

T59 WHI+T30 CHR+P2
  • T59 WHI: White aluminium high level cistern including cistern fittings
  • T30 CHR: High level flush pipe kit including lever, rigid pull chain, flush pipes, reverse screw cistern connector, stopper and ornate brackets
  • P2: Low/high level pan

Additional Information

The high level level wc uses a standard low level pan ( P2 ) and specialed high level cistern, connected with a medium level flush pipe kit T30 CHR

The flush mechanism comes in two options : dual flush rod pull cistern C5, or single flush chain pull cistern C28PK

A special flush pipe kit that allows the cistern to be placed on a wall next to the pan is available : Angled Flush Pipe Kit T34 CHR

Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.

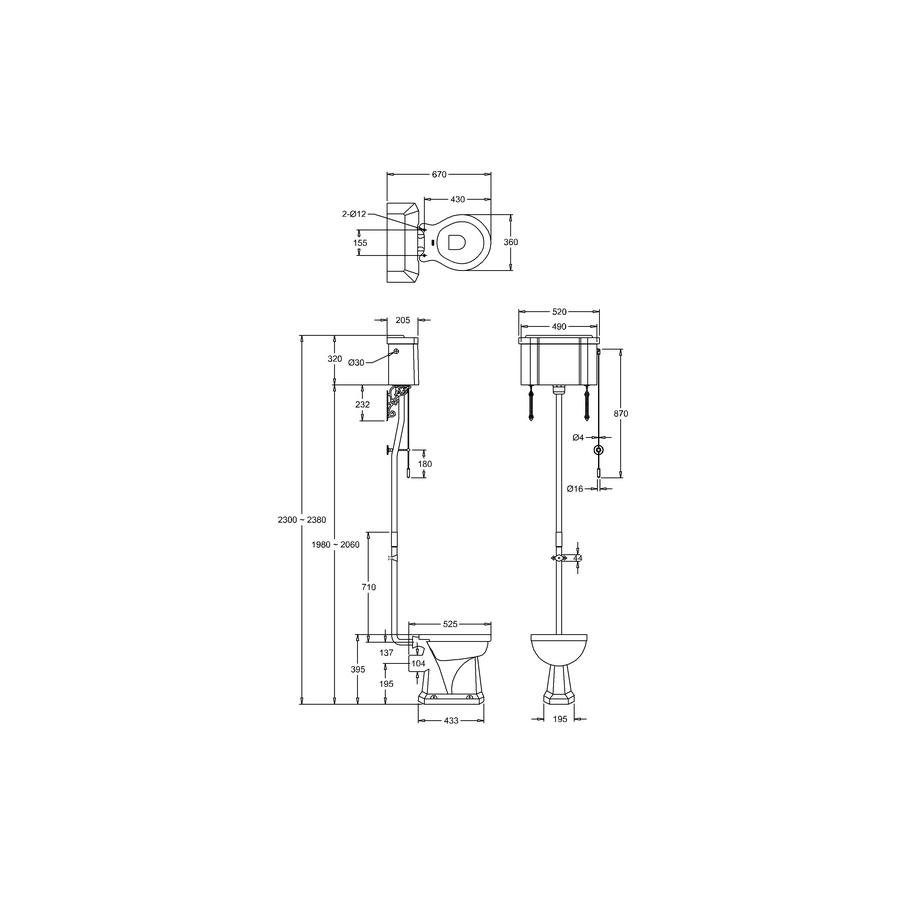

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 2,380mm to the top of the cistern, minimum height is 1,625mm.

P trap standard height pan - height from floor to pan rim is 40cm.

Regal Height pan ( floor to pan rim height 48cm ) available : P16

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26

Cistern can be used with optional decorative Ornate Brackets T32 CHR

High level wc can be used with standard Burlington toilet seats or with the Throne seats ( S14 & S15 )

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25

Water Inlet valve hole is located on the side of cistern tank.

Inlet valve (SP7)

Guarantee

25 years domestic installations
1 year commercial installations

Standards Information

BS EN 997:2012 WC pans and WC suites with integral trap
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr

Available Spare Parts

  • SP459: Black rubber wedge for T30CHR
  • SP82: Brass fixing nut for T30 CHR, T33 CHR, T34 CHR
  • SP429: Buffer Clip for T30CHR without black rubber wedge
  • SP104: Control bracket for T30CHR
  • SP119: Decorative cover of cistern connection for T30 CHR & T33 CHR
  • SP391: Extra parts in gold finish for SP7 cistern fittings
  • SP7: Fittings for High Level Cistern including Cistern Lever
  • SP97: Flush cone for HL cistern
  • SP15: Handle for high level cistern from T30CHR kit
  • SP13: High Level Cistern Lid for C5
  • SP14: High Level Rod
  • SP384: Inlet valve with G1, 2 chromed-Brass shank and nut for High lever cistern fittings (part of SP7)
  • SP16: Long pull arm for High level cistern from T30CHR kit
  • SP146: Pin screw for T30 CHR
  • SP918: Plastic hole stopper of cistern fittings for high level cisterns
  • SP169: Rubber insert for SP20 clip
  • SP17: Screw fixing pack for pan and bidet
  • SP105: Spares for T30CHR: allen key x 1, screw x 12, rawl plug x 12, rubber spacing washer x 4, pin screw x 1
  • SP18: The bottom section of the H, L flush pipe
  • SP103: Upper flush pipe for T30CHR
  • SP95: Washers & plastic fixing nut for flush pipe

Specification

Product Type Traditional
Overall height max 240cm, min 232cm
max 240cm, min 232cm
max 240cm, min 232cm
Material P2: Pan - Vitreous china
C5: Cistern - Vitreous china
T58 ALU: Cistern - Aluminum
T59 WHI: Cistern - Aluminum
T60 BLA: Cistern - Aluminum
T30 CHR: Fittings - Brass
Size P2: 530 x 410 x 360mm
C5: 520 x 327 x 205mm
T58 ALU: 430 x 200 x 360mm
T59 WHI: 430 x 200 x 360mm
T60 BLA: 430 x 260 x 300mm
T30 CHR: 170 x 37 x 1720mm
Nett Weight P2: Pan - 16.75kg
C5: Cistern - 16.15kg
T58 ALU: Cistern - 10.15kg
T59 WHI: Cistern - 10.15kg
T60 BLA: Cistern - 10.15kg
T30 CHR: Fittings - 3.5kg
Gross Weight Including Packaging P2: Pan - 18.55kg
C5: Cistern - 17.3kg
T58 ALU: Cistern - 10.9kg
T59 WHI: Cistern - 10.9kg
T60 BLA: Cistern - 10.9kg
T30 CHR: Fittings - 5.1kg
Packed Dimension P2: 380 x 550 x 438 = 0.0915 m3
C5: 225 x 540 x 370 = 0.045 m3
T58 ALU: 450 x 215 x 380 = 0.0368 m3
T59 WHI: 450 x 215 x 380 = 0.0368 m3
T60 BLA: 450 x 215 x 380 = 0.0368 m3
T30 CHR: 1140 x 380 x 105 = 0.0455 m3
Colour P2: Pan - White
C5: Cistern - White
T58 ALU: Cistern - Polished
T59 WHI: Cistern - White
T60 BLA: Cistern - Black
Barcode T30 CHR: 5055806007024
P2: 5055806005198
T58 ALU: 5055806007512
T60 BLA: 5055806007574
T59 WHI: 5055806007529
Packed Dimension P2: 380 x 550 x 438 = 0.0915 m3
C5: 225 x 540 x 370 = 0.045 m3
T58 ALU: 450 x 215 x 380 = 0.0368 m3
T59 WHI: 450 x 215 x 380 = 0.0368 m3
T60 BLA: 450 x 215 x 380 = 0.0368 m3
T30 CHR: 1140 x 380 x 105 = 0.0455 m3
Colour P2: Pan - White
C5: Cistern - White
T58 ALU: Cistern - Polished
T59 WHI: Cistern - White
T60 BLA: Cistern - Black

Downloads

Click for Instructions T30 CHR (English)

Click for Instructions T30 CHR (French)

Click for Instructions T58 ALU (French)
