Description
Illustrated Code

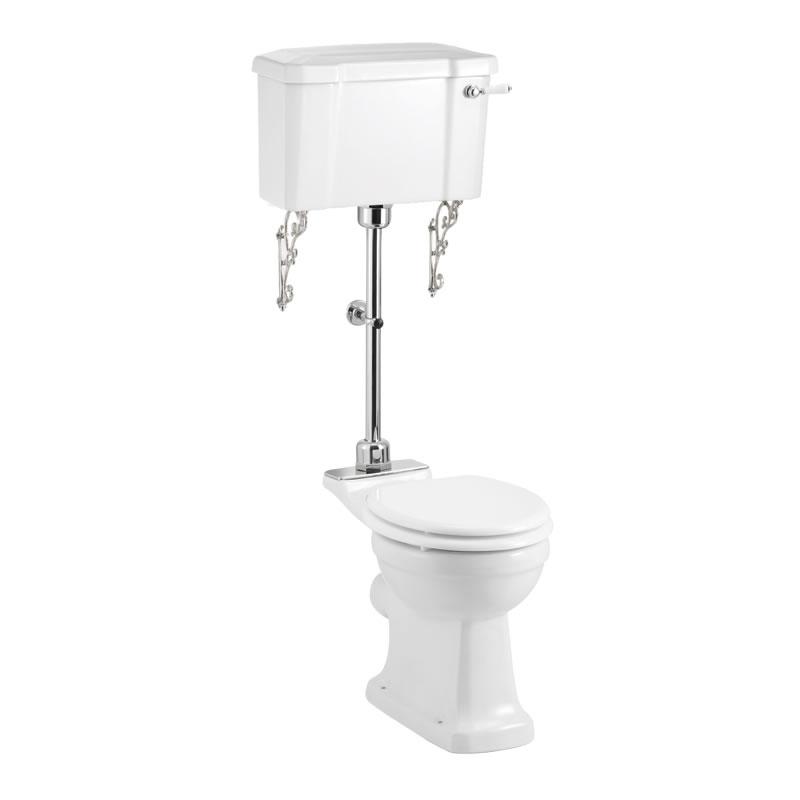

C1+T33 CHR+P12- C1: Close Coupled / Low level cistern 51cm Ceramic Lever (incl. bottom entry cistern fittings)
- T33 CHR: Medium level flush pipe kit including medium ornate brackets in chrome
- P12: Regal close coupled pan
Additional Information
Inlet Position Inlet is located on the base of cistern tank on the right side
Guarantee
25 years domestic installations1 year commercial installations
Standards Information
BS EN 997:2012 WC pans and WC suites with integral trapChrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
Available Spare Parts
- SP11: 51cm Cistern Lid For C1 & C2
- SP511: Back entry kit for C1, C3, C24, including back entry inlet valve with flexible hose and plug
- SP506 bag of fixings for T33 CHR: Including screws, washers, plastic plugs, allen key
- SP82: Brass fixing nut for T30 CHR, T33 CHR, T34 CHR
- SP8: Ceramic Cistern lever for Close Coupled, Low Level Cistern
- SP84: Cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
- SP20: Clip for T33 CHR ML kit
- SP973: Cone shaped washer, plastic washer and plastic fixing nut of cistern fittings C1, C2, C3, C4, C30, C1D
- SP119: Decorative cover of cistern connection for T30 CHR & T33 CHR
- SP390: Extra parts in gold finish for SP5 cistern fittings
- SP136: Flush cone washer for T33 CHR
- SP187: Flush pipe of T33CHR
- SP5A: Lever Flush Bottom Entry cistern fitting with ceramic lever
- SP898: Pan decoration plate (including the screws, washers and fixing nuts) of product T33 CHR
- SP169: Rubber insert for SP20 clip
- SP802: The bigger stopper for SP5A
- SP460: Thick rubber washer for T33CHR
Specification
Product Type | Traditional |
Overall height | 149cm |
Material | P12: Pan - Vitreous china C1: Cistern - Ceramic & brass T33 CHR: Fittings - Brass |

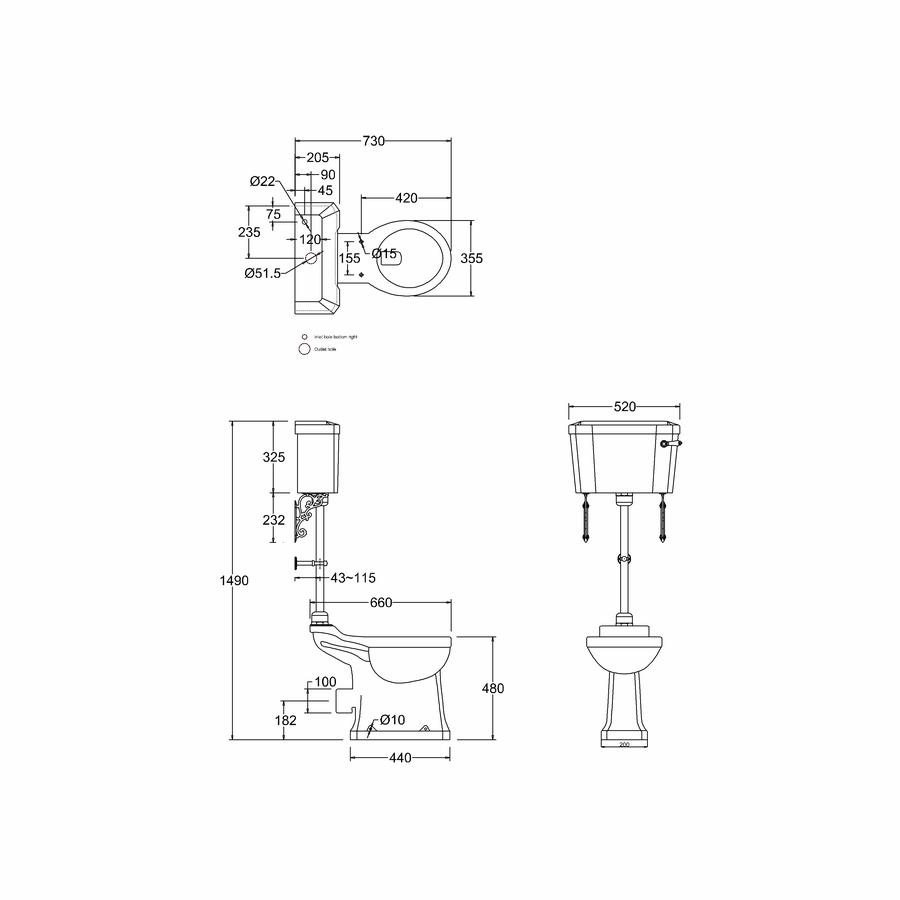

Size | P12: 730 x 520 x 845mm C1: 520 x 327 x 205mm T33 CHR: 703 x 220 x 105mm |
Nett Weight | P12: Pan - 21.7kg C1: Cistern - 16kg T33 CHR: Fittings - 2.4kg |
Gross Weight Including Packaging | P12: Pan - 24.45kg C1: Cistern - 18.25kg T33 CHR: Fittings - 3.9kg |
Packed Dimension | P12: 680 x 373 x 550 = 0.1395 m3 C1: 225 x 540 x 370 = 0.045 m3 T33 CHR: 765 x 195 x 210 = 0.0313 m3 |
Colour | P12: Pan - White T33 CHR: Fittings - Chrome plated |
Barcode | T33 CHR: 5055806007147 P12: 5055806005136 C1: 5055806001992 |
Packed Dimension | P12: 680 x 373 x 550 = 0.1395 m3 C1: 225 x 540 x 370 = 0.045 m3 T33 CHR: 765 x 195 x 210 = 0.0313 m3 |
Colour | P12: Pan - White T33 CHR: Fittings - Chrome plated |
Downloads
Click for Instructions T33 CHR (English)
Click for Instructions C1 (English)
