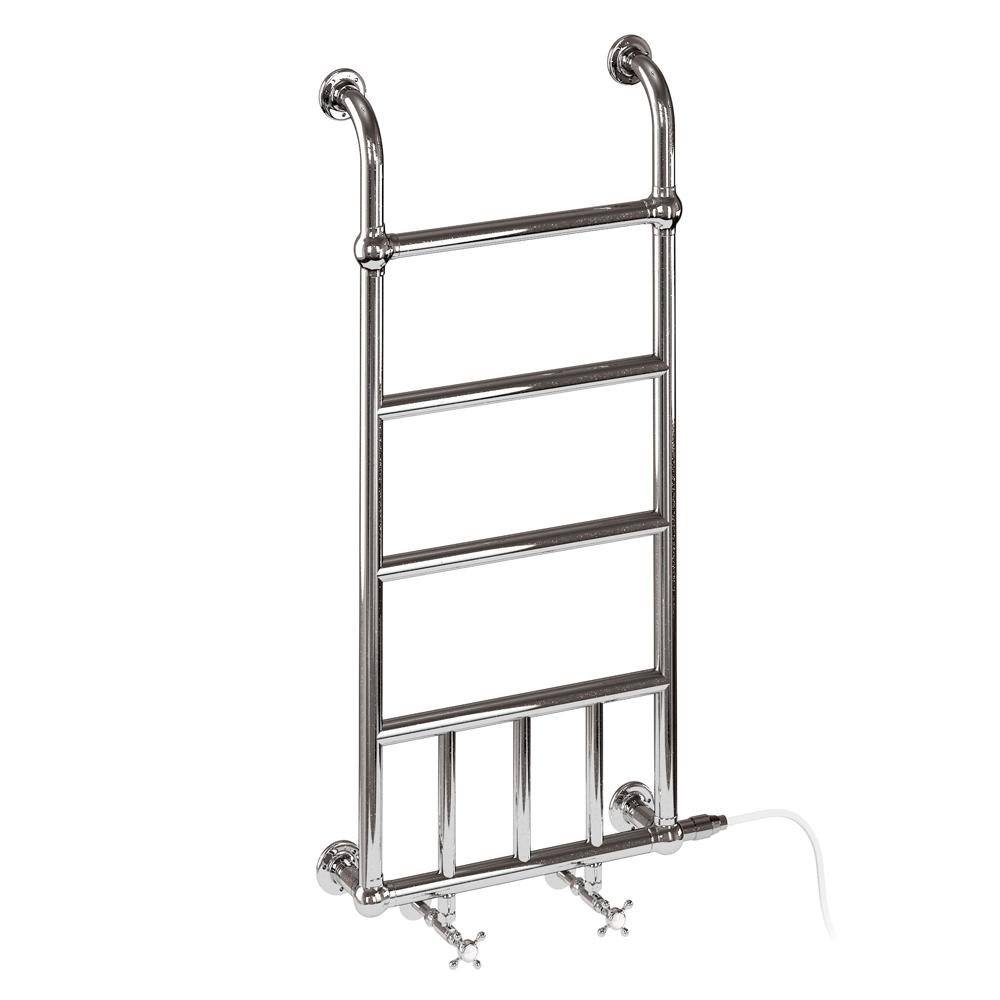

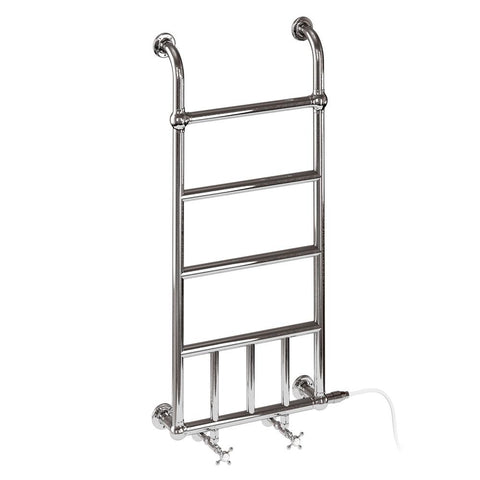

Burlington Traditional Chrome Chaplin Radiator

by Burlington
Save £152.01
£608.01
£456.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

R12 CHR+R6 CHR
  • R12 CHR: Chaplin - chrome
  • R6 CHR: Angled wall mounted rad valve - chrome

Additional Information

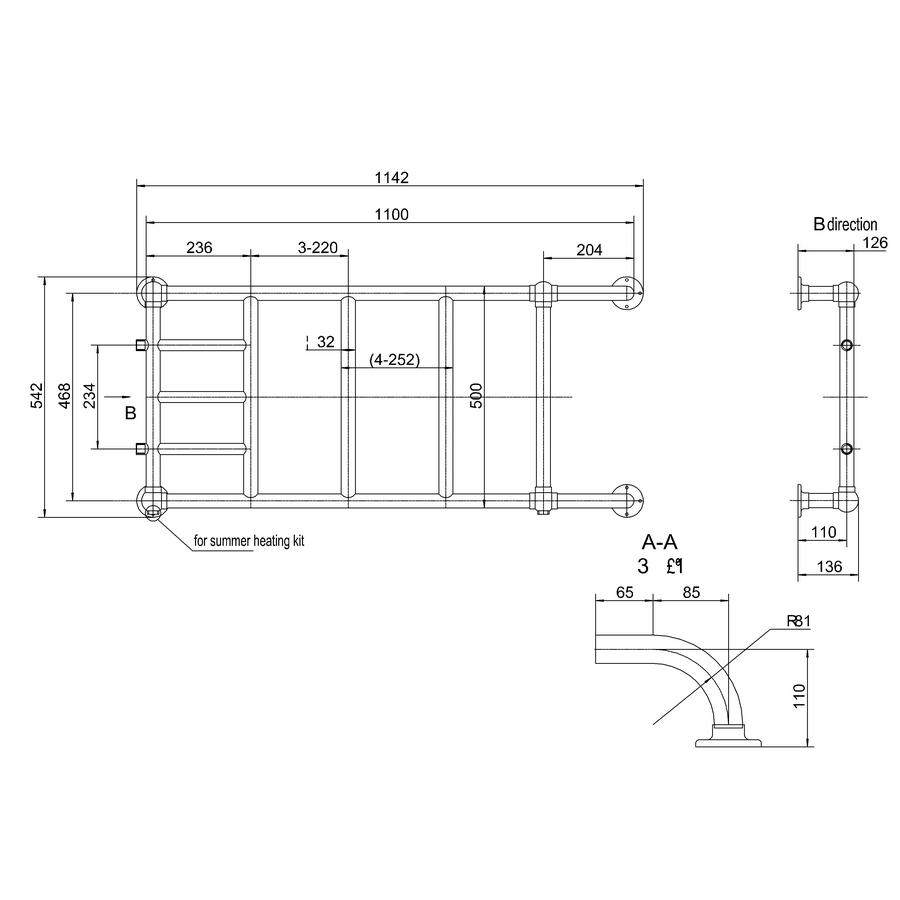

Diameter of tubes is 32mm.

Output:1092BTUs/320 watts(?T=50?)

Distance from wall to the rail: 94mm.

Fill the radiator approximately 90% (3.1L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system)

Includes all brackets and fixings.

Valves are required. These are not included.

Operating pressure up to 8 bar.(Certified by BEN N.L)

Maximum working temperature:70?

234mm plumping pipe centers

for technical information on the summer heating kit please refer to the summer heating kit section

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS EN442-1:2003 Specification for radiators and convectors. Technical specifications and requirements
BS EN442-2:2003 Specification for radiators and convectors. Test methods and rating
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr

Compatible Products

  • R6 CHR: Angled radiator valves
  • R8 CHR: 150W Summer electric heating kit for Chaplin, Cleaver, Berkeley & Vincent

Available Spare Parts

  • SP801: Air valve for Burlington radiators
  • SP47: B logo ceramic indice (D=21.4mm) for V12, CH19, R6 CHR, R7 CHR
  • SP844: Ceramic indice, chrome surround and brass thread of product R6 CHR, R7 CHR
  • SP165: Chrome pipe cover to hide floor connection for R6 CHR (Pair)
  • SP656: Pair of support pipe for R6CHR, R7CHR
  • SP917: Screw pack of Burlington radiators
  • SP835: Spare parts of radiator valve handles for product R6 CHR, R7 CHR

Specification

Product Type Traditional
Overall height 114.2cm
Material R12 CHR: Radiator - Steel
R6 CHR: Valve - Brass
Size R12 CHR: 1142 x 542 x 136mm
R6 CHR: 65 x 65 x 125mm
Nett Weight R12 CHR: Radiator - 10kg
R6 CHR: Valve - 0.8kg
Gross Weight Including Packaging R12 CHR: Radiator - 12kg
R6 CHR: Valve - 1kg
Packed Dimension R12 CHR: 1170 x 570 x 145 = 0.0967 m3
R6 CHR: 150 x 120 x 50 = 0.0009 m3
Colour R12 CHR: Radiator - Chrome
R6 CHR: Valve - Chrome plated
Barcode R6 CHR: 5055806006201
R12 CHR: 5055806005549
Packed Dimension R12 CHR: 1170 x 570 x 145 = 0.0967 m3
R6 CHR: 150 x 120 x 50 = 0.0009 m3
Colour R12 CHR: Radiator - Chrome
R6 CHR: Valve - Chrome plated

Downloads

Click for Instructions R12 CHR (English)

Click for Instructions R12 CHR (French)
