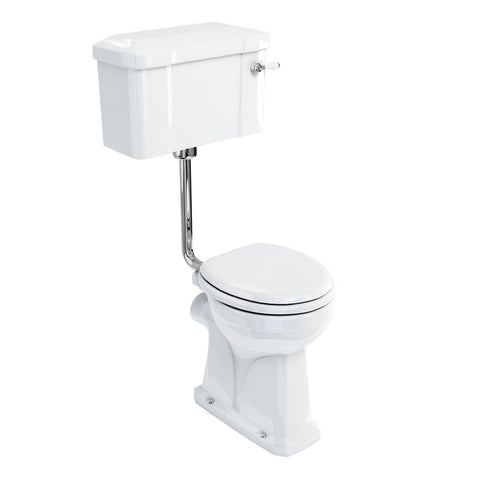

Burlington Traditional Regal Low Or High Level Pan

Save £132.01
Original price £530.01
Current price £398.00
SKU P16+C1+T31 CHR

Illustrated Code

P16+C1+T31 CHR
  • P16: Regal low/high level pan
  • C1: Close Coupled / Low level cistern 51cm Ceramic Lever (incl. bottom entry cistern fittings)
  • T31 CHR: Low level flush pipe kit including flush pipes and reverse screw cistern connector

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS EN 997:2012 WC pans and WC suites with integral trap
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr

Available Spare Parts

  • SP11: 51cm Cistern Lid For C1 & C2
  • SP511: Back entry kit for C1, C3, C24, including back entry inlet valve with flexible hose and plug
  • SP965: Brass decorative cover of cistern connection for product T31 CHR
  • SP8: Ceramic Cistern lever for Close Coupled, Low Level Cistern
  • SP84: Cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
  • SP973: Cone shaped washer, plastic washer and plastic fixing nut of cistern fittings C1, C2, C3, C4, C30, C1D
  • SP390: Extra parts in gold finish for SP5 cistern fittings
  • SP890: Flush pipe of product T31 CHR
  • SP160: L shape bracket(pair) of T31CHR
  • SP5A: Lever Flush Bottom Entry cistern fitting with ceramic lever
  • SP802: The bigger stopper for SP5A

Specification

Product Type Traditional
Material P16: Pan - Vitreous china
C1: Cistern - Ceramic & brass
T31 CHR: Fittings - Brass

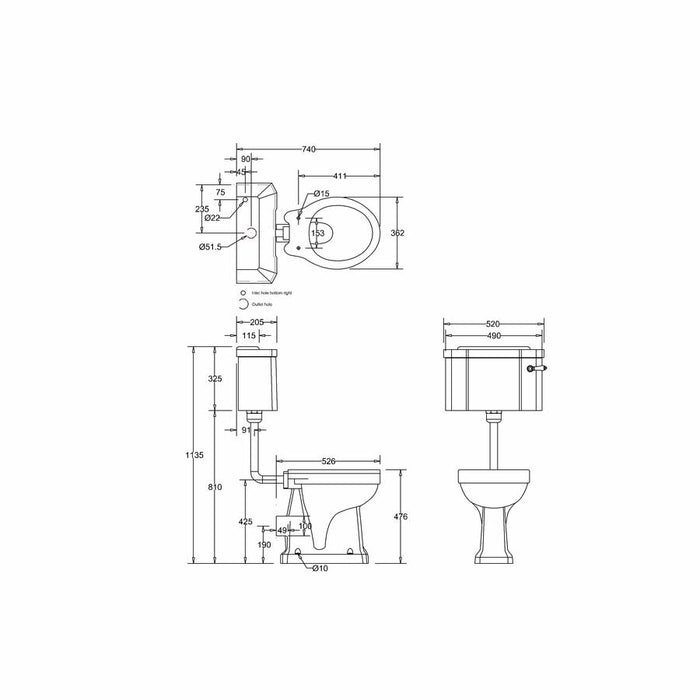

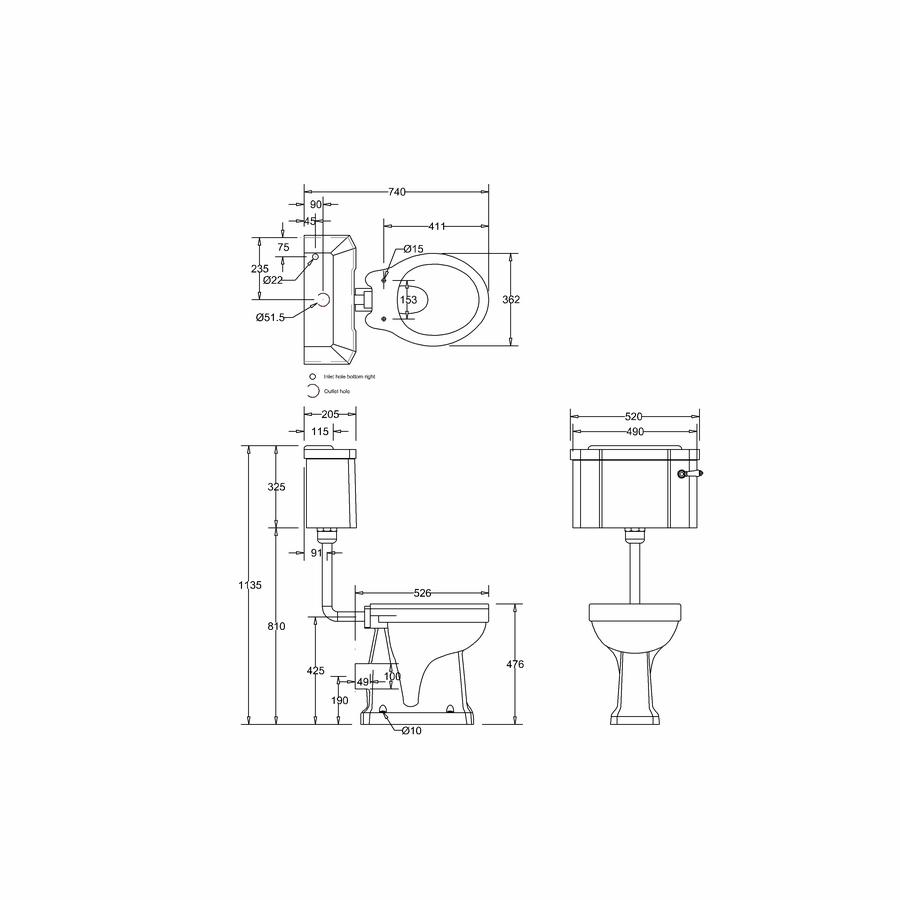

Size P16: 523 x 360 x 490mm
C1: 520 x 327 x 205mm
T31 CHR: 221 x 38 x 461mm
Nett Weight P16: Pan - 18.95kg
C1: Cistern - 16kg
T31 CHR: Fittings - 1.19kg
Gross Weight Including Packaging P16: Pan - 20.55kg
C1: Cistern - 18.25kg
T31 CHR: Fittings - 1.64kg
Packed Dimension P16: 545 x 380 x 525 = 0.1087 m3
C1: 225 x 540 x 370 = 0.045 m3
T31 CHR: 505 x 240 x 70 = 0.0085 m3
Colour P16: Pan - White
T31 CHR: Fittings - Crome plated
Barcode T31 CHR: 5055806007048
C1: 5055806001992
P16: 5055806005174
Packed Dimension P16: 545 x 380 x 525 = 0.1087 m3
C1: 225 x 540 x 370 = 0.045 m3
T31 CHR: 505 x 240 x 70 = 0.0085 m3
Colour P16: Pan - White
T31 CHR: Fittings - Crome plated

Downloads

Click for Instructions T31 CHR (English)

Click for Instructions C1 (English)

Click for Instructions T31 CHR (French)

Click for Instructions C1 (French)
