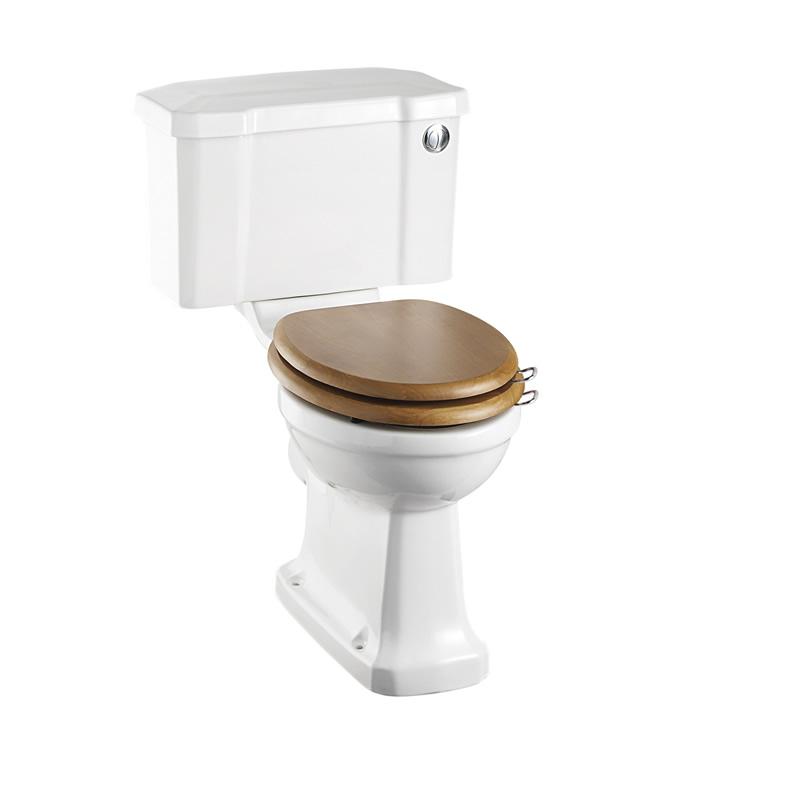

Burlington Traditional Rimless Close Coupled Pan with Cistern 51cm Front Button

Save £92.00
Original price £369.00
Current price £277.00
SKU P20+C2

Illustrated Code

P20+C2
  • P20: Burlington Rimless Close Coupled Pan
  • C2: Close Coupled / Low level cistern 51 cm Front Button (incl. bottom entry cistern fittings)

Additional Information

Water Inlet valve hole is located on the base of cistern tank on the right hand side

Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug

Dual flush cistern fittings with ceramic lever on the right.

P trap standard height pan - height from floor to pan rim is 40cm.

Regal Height pan ( floor to pan rim height 48cm ) available : P12

Recommended to be used with cistern tank isolation valve W25

Supplied with floor fixings.

Close coupled wc must be used with standard Burlington toilet seats

Metal connection bracket.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26

Guarantee

25 years domestic installations
1 year commercial installations

Standards Information

BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern. Connecting dimensions
BS EN 997:2012 WC pans and WC suites with integral trap

Available Spare Parts

  • SP11: 51cm Cistern Lid For C1 & C2
  • SP6: Button Dual Flush Bottom Entry cistern fitting
  • SP85: Cistern flush valve with control cable SP6 (excluding button and inlet valve)
  • SP9: Cistern Push Button
  • SP973: Cone shaped washer, plastic washer and plastic fixing nut of cistern fittings C1, C2, C3, C4, C30, C1D
  • SP504: Inlet valve for C2

Specification

Product Type Traditional
Overall height 78cm
Material P20: Vitreous china
C1: Cistern - Ceramic & brass
C2: Cistern - Vitreous china
Size P20: 642 x 355 x 453mm
C1: 520 x 327 x 205mm
C2: 515 x 205 x 327mm
Nett Weight P20: 22.6kg
C1: Cistern - 16kg
C2: Cistern - 16kg
Gross Weight Including Packaging P20: 25.25kg
C1: Cistern - 18.25kg
C2: Cistern - 18.25kg
Packed Dimension P20: 675 x 375 x 480 = 0.1215 m3
C1: 225 x 540 x 370 = 0.045 m3
C2: 225 x 540 x 370 = 0.045 m3
Barcode C2: 5055806002159
P20: 5055806032453
Packed Dimension P20: 675 x 375 x 480 = 0.1215 m3
C1: 225 x 540 x 370 = 0.045 m3
C2: 225 x 540 x 370 = 0.045 m3

Downloads

Click for Instructions C2 (English)

Click for Instructions C2 (French)
