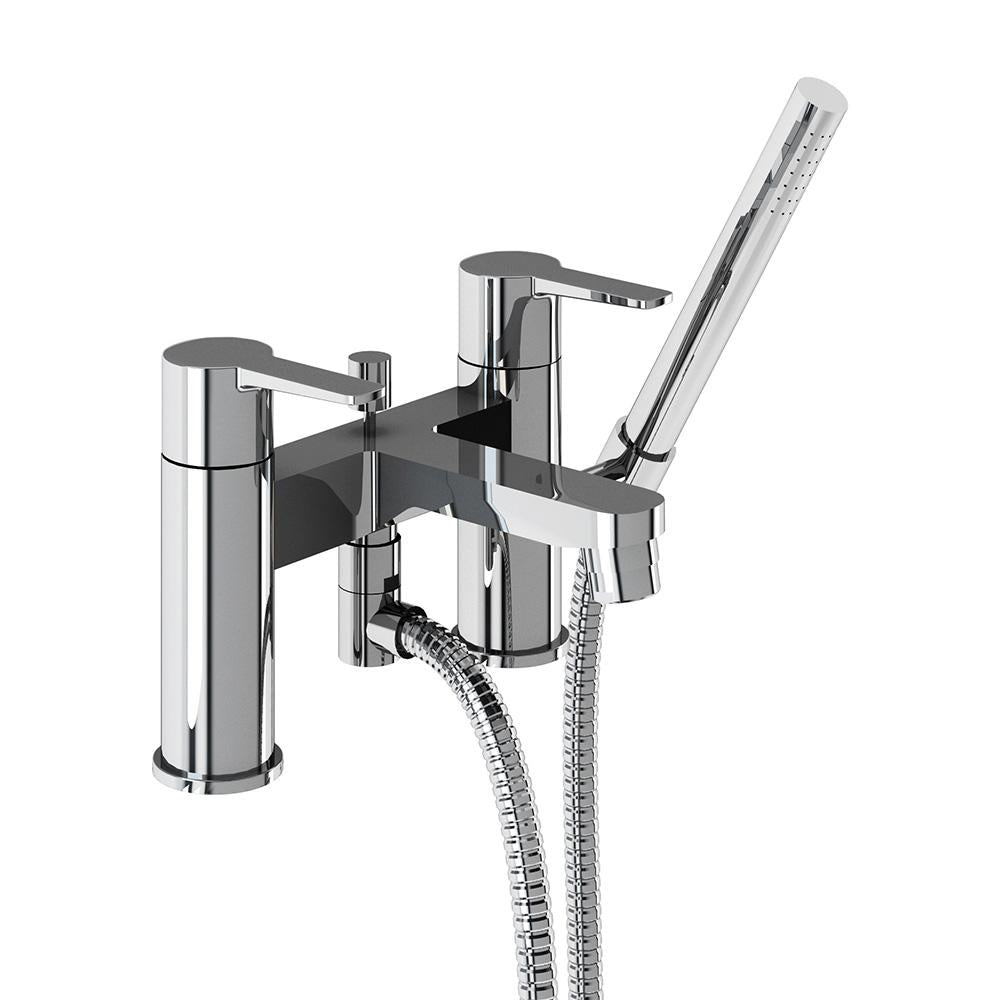

Clearwater Crystal Bath Chrome plated Shower Mixer

by Clearwater
Save £107
£429.00
£322.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

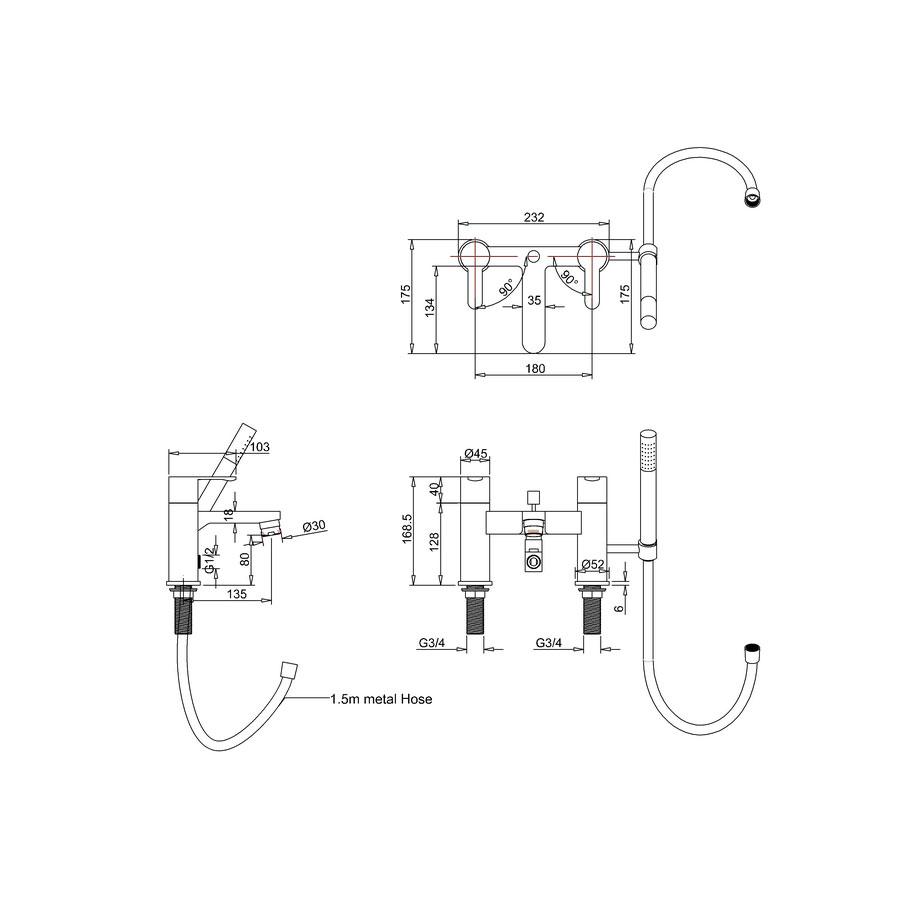

Illustrated Code

CTA7
  • CTA7: Crystal bath shower mixer

Additional Information

Supplied with Flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

All mixers work on 0.2 bar to 5 bar pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

Level 10 salt spray tested
Chrome plated to EN248:2002
EN817:2008
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications
EN200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Handset 4.62 8.46 12.7 18.65 20.92
Spout (Straightener) 13.22 20.43 29.73 42.95 51.31
Spout (aerator) 5.78 8.63 11.62 16.53 20.1

Available Spare Parts

  • SP1005: Handset holder of product CTA7, CTA16
  • SP197: Aerator for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14
  • SP752: Base ring for CTA6, CAT7, CAT15, CTA16
  • SPW4: Cap & grub screw for crystal taps
  • SP440: Cold cartridge for CTA6, CTA7, CTA15, CTA16
  • SP687: Complete spare cold lever for CTA6, CTA7(blue), including grub screw, cover cap
  • SP686: Complete spare hot lever for CTA6, CTA7(red), including grub screw, cover cap
  • SP444: Diverter for product CTA7, CTA16
  • SP196: Flow straightener for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14
  • SP676: Handset for CTA7, CTA16
  • SP856: Hose of product CTA7, CTA16, V53, V54, V55, V56
  • SP441: Hot cartridge for CTA6, CTA7, CTA15, CTA16
  • SP562: Outlet for CTA16, CTA7

Specification

Finish Chrome plated
Product Type Modern
Overall Height 250
Material Tap - Brass
Size 310 x 275 x 228mm
Barcode 5055806002814
Nett Weight Tap - 5kg
Gross Weight Including Packaging Tap - 6kg
Packed Dimension 310 x 275 x 228 = 0.0194 m3
Colour Tap - Chrome plated

Downloads

Click for Instructions CTA7 (English)

Click for Instructions CTA7 (French)
