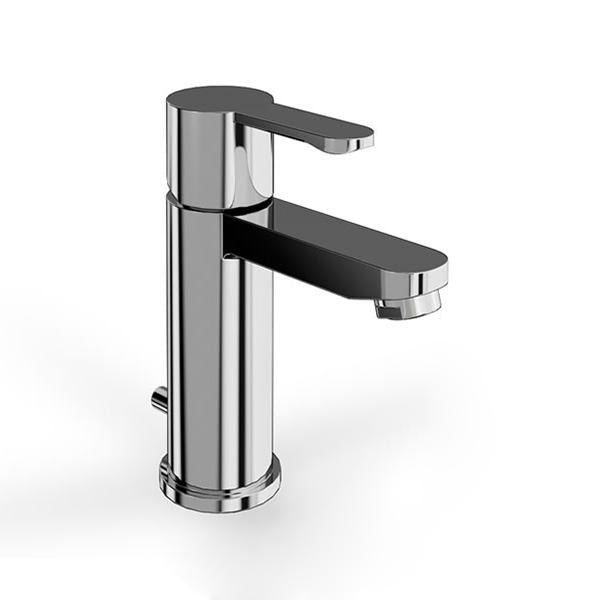

Clearwater Crystal Chrome plated Basin Mixer with Pop-Up Waste

by Clearwater
Save £47
£189.00
£142.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

CTA2
  • CTA2: Crystal basin mixer with pop up waste

Additional Information

Supplied with Flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

All mixers work on 0.2 bar to 5 bar pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

Level 10 salt spray tested
EN817:2008
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications
EN200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Chrome plated to EN248:2002

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (Straightener) 4.07 6.92 9.99 14.31 17.22
Spout (aerator) 2 3.4 4.82 6.88 8.37

Available Spare Parts

  • SP849: Aerator for product CTA1, CTA9, CTA2, CTA11, CTA3, CTA12, CTA8, CTA10
  • SPW4: Cap & grub screw for crystal taps
  • SP176: Cartridge for Crystal and Sapphire basin mixer (CTA1, CTA2, CTA3, CTA4, CTA9, CTA11, CTA12, CTA13)
  • SP561: Crystal tap lever of product CTA1, CTA2, CTA3, CTA4 (including grub screw & cover cap)
  • SP822: Fixing nut of product CTA1, CTA2, CTA3, CTA4, CTA5, CTA8, CTA9, CTA10, CTA11, CTA12, CTA13, CTA14
  • SP810: Flexible pipes (hot & cold) - pair for product CTA1, CTA9, CTA2, CTA11, CTA4, CTA13, ARC12, ARC12 CHR, ARC13, ARC13 CHR
  • SP850: Flow straightener for product CTA1, CTA9, CTA2, CTA11, CTA3, CTA12, CTA8, CTA10

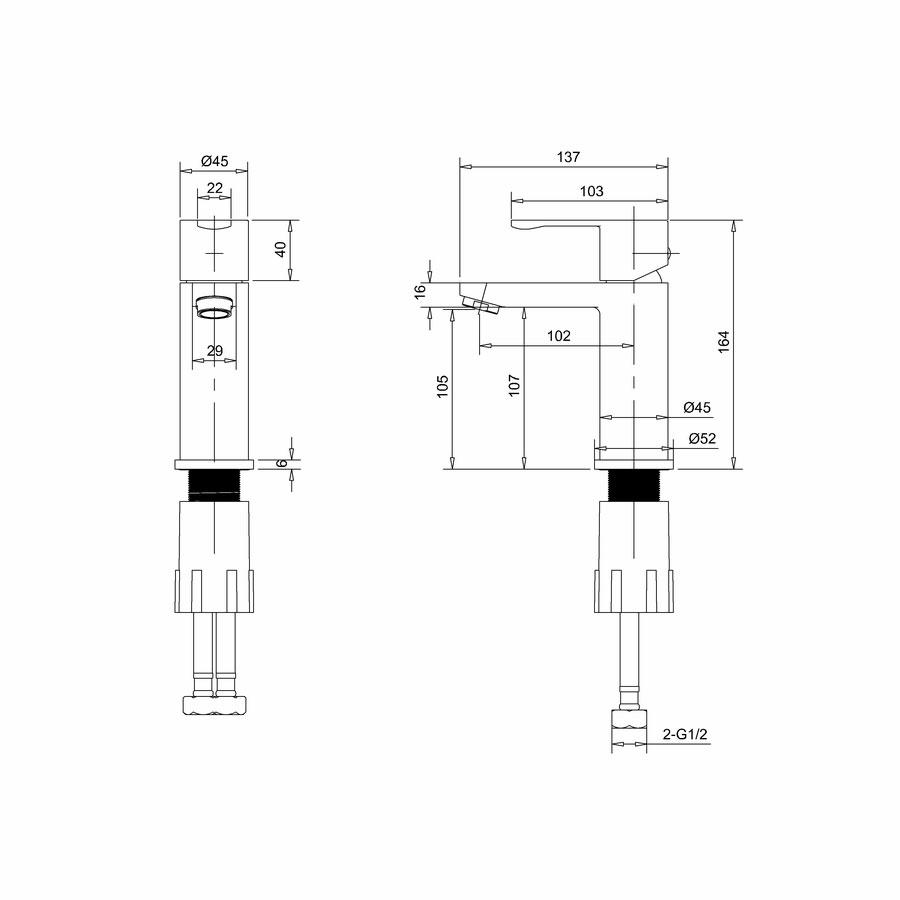

Specification

Finish Chrome plated
Product Type Modern
Overall Height 164
Material CTA1: Tap - Brass
CTA2: Tap - Brass
Size CTA1: 320 x 220 x 60mm
CTA2: 320 x 225 x 110mm
Barcode 5055806002760
Nett Weight CTA1: Tap - 1.3kg
CTA2: Tap - 1.7kg
Gross Weight Including Packaging CTA1: Tap - 1.7kg
CTA2: Tap - 2.1kg
Packed Dimension CTA1: 320 x 220 x 60 = 0.0042 m3
CTA2: 320 x 225 x 110 = 0.0079 m3
Colour CTA1: Tap - Chrome plated
CTA2: Tap - Chrome plated

Downloads

Click for Instructions CTA2 (English)

Click for Instructions CTA2 (French)
