Clearwater Crystal Chrome plated Basin Mixer Without Waste

by Clearwater
Save £42

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

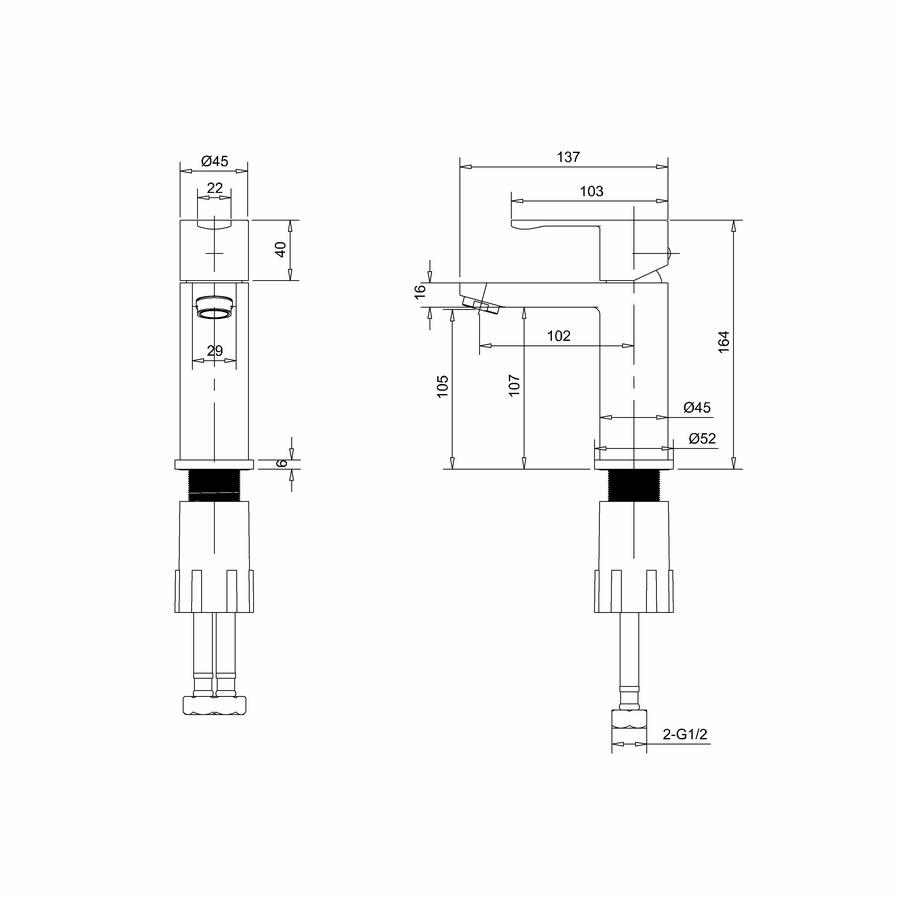

Illustrated Code

  • CTA1: Crystal basin mixer without pop up waste

Additional Information

Supplied with Flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

All mixers work on 0.2 bar to 5 bar pressure


10 years domestic installations
1 year commercial installations

Standards Information

Level 10 salt spray tested
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Chrome plated to EN248:2002

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (Straightener) 4.07 6.92 9.99 14.31 17.22
Spout (aerator) 2 3.4 4.82 6.88 8.37

Available Spare Parts

  • SP849: Aerator for product CTA1, CTA9, CTA2, CTA11, CTA3, CTA12, CTA8, CTA10
  • SPW4: Cap & grub screw for crystal taps
  • SP176: Cartridge for Crystal and Sapphire basin mixer (CTA1, CTA2, CTA3, CTA4, CTA9, CTA11, CTA12, CTA13)
  • SP561: Crystal tap lever of product CTA1, CTA2, CTA3, CTA4 (including grub screw & cover cap)
  • SP822: Fixing nut of product CTA1, CTA2, CTA3, CTA4, CTA5, CTA8, CTA9, CTA10, CTA11, CTA12, CTA13, CTA14
  • SP810: Flexible pipes (hot & cold) - pair for product CTA1, CTA9, CTA2, CTA11, CTA4, CTA13, ARC12, ARC12 CHR, ARC13, ARC13 CHR
  • SP850: Flow straightener for product CTA1, CTA9, CTA2, CTA11, CTA3, CTA12, CTA8, CTA10


Finish Chrome plated
Product Type Modern
Overall Height 164
Material CTA1: Tap - Brass
CTA2: Tap - Brass
Size CTA1: 320 x 220 x 60mm
CTA2: 320 x 225 x 110mm
Barcode 5055806002685
Nett Weight CTA1: Tap - 1.3kg
CTA2: Tap - 1.7kg
Gross Weight Including Packaging CTA1: Tap - 1.7kg
CTA2: Tap - 2.1kg
Packed Dimension CTA1: 320 x 220 x 60 = 0.0042 m3
CTA2: 320 x 225 x 110 = 0.0079 m3
Colour CTA1: Tap - Chrome plated
CTA2: Tap - Chrome plated


Click for Instructions CTA1 (English)

Click for Instructions CTA1 (French)
