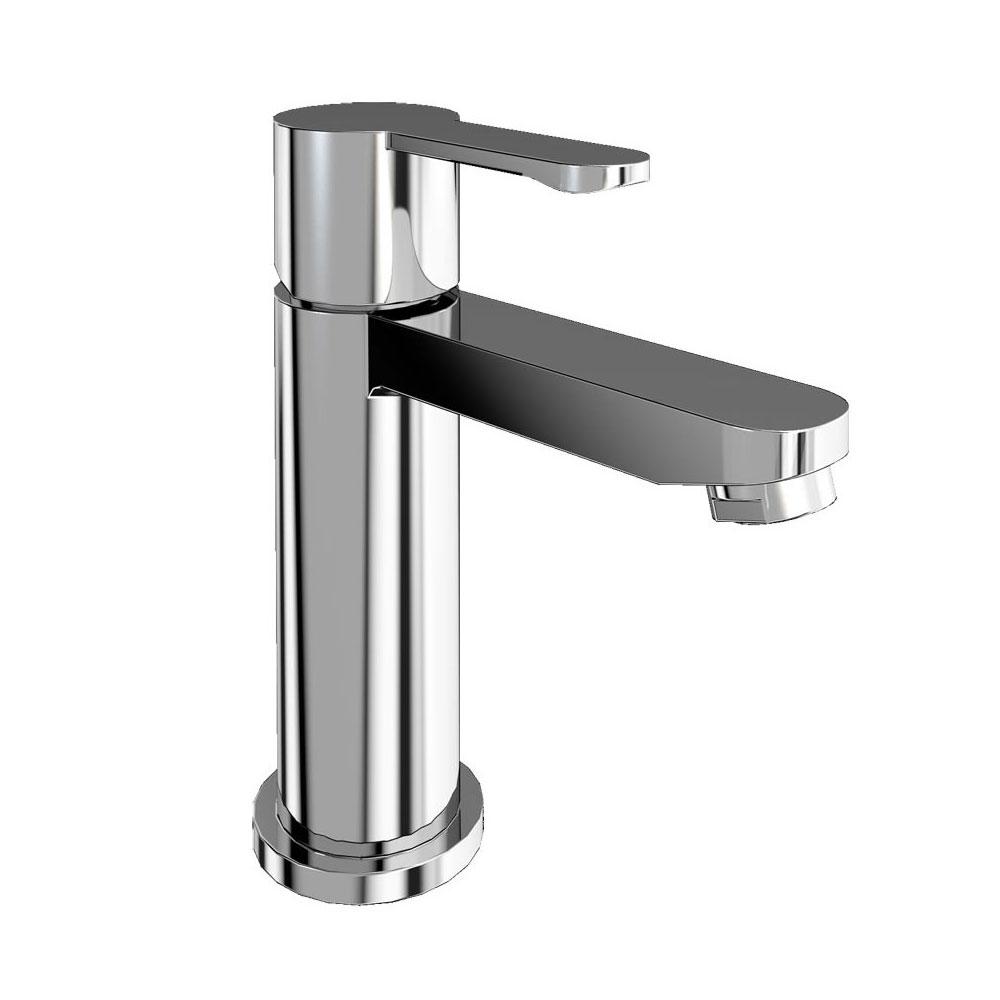

Clearwater Crystal Mini Chrome plated Basin Mixer Without Waste

Save £37.01
Original price £149.01
Current price £112.00
CODE: CTA8

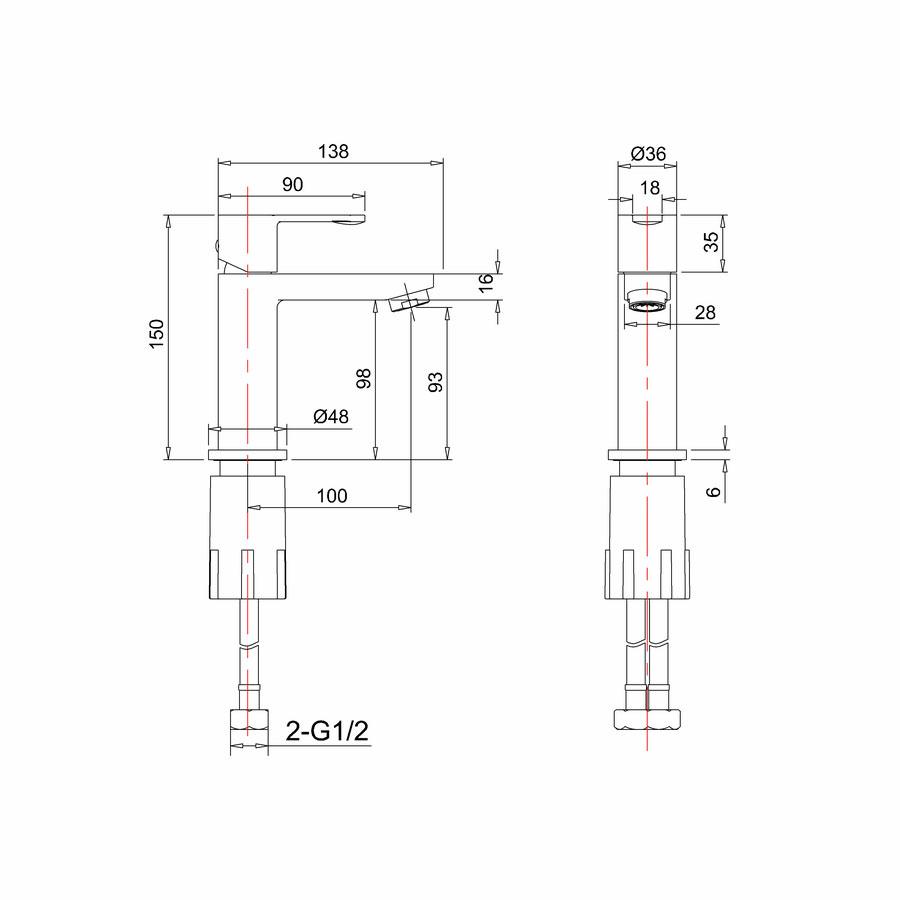

Illustrated Code

CTA8
  • CTA8: Crystal mini basin mixer without pop up waste

Additional Information

Supplied with Flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

All mixers work on 0.2 bar to 5 bar pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

Level 10 salt spray tested
Chrome plated to EN248:2002
EN817:2008
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications
EN200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (Straightener) 1.97 3.64 5.31 7.6 9.33
Spout (aerator) 1.57 2.71 4 6.14 7.67

Available Spare Parts

  • SP849: Aerator for product CTA1, CTA9, CTA2, CTA11, CTA3, CTA12, CTA8, CTA10
  • SP590: Cartridge for CTA8, CTA10
  • SP703: Complete spare lever to suit CTA8, including grub screw, cover cap
  • SP822: Fixing nut of product CTA1, CTA2, CTA3, CTA4, CTA5, CTA8, CTA9, CTA10, CTA11, CTA12, CTA13, CTA14
  • SP809: Flexible pipes (hot & cold) - pair for product CTA8, CTA10, ARC14, ARC14 CHR, ARC35, ARC35 CHR
  • SP850: Flow straightener for product CTA1, CTA9, CTA2, CTA11, CTA3, CTA12, CTA8, CTA10

Specification

Finish Chrome plated
Product Type Modern
Overall Height 150
Material Tap - Brass
Size 138 x 60 x 50mm
Barcode 5055806002821
Nett Weight Tap - 1.04kg
Gross Weight Including Packaging Tap - 1.35kg
Packed Dimension 320 x 220 x 60 = 0.0042 m3
Colour Tap - Chrome plated

Downloads

Click for Instructions CTA8 (English)

Click for Instructions CTA8 (French)
