Description
Characteristics
- Flush plate with securing bar
- Flush time setting with air nozzles (pneumatic)
- Low flush actuation force
- Short stroke movement
- Flush actuation when the actuator button is released
- Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set
Technical data
- Flow pressure : 1-8 bar
- Maximum test pressure, water : 16 bar
- Maximum test pressure, air / inert gas : 3 bar
- Relative humidity :< 100 %
- Maximum operating temperature, water : 30 °C
- Actuation force :< 12 N
- Flow rate at 1 bar without flow limiter : 0.3 l/s
- Flow rate at 1 bar with flow limiter : 0.24 l/s
- Calculated flow rate : 0.3 l/s
- Minimum flow pressure for calculated flow rate : 1 bar
- Flush time, adjustment range : 4/8/12 s
Scope of delivery
- Flush plate type 30
- Pneumatic flush actuation, premounted on mounting frame
- Pneumatic valve
- Fastening material
Application purposes
- For manual flush actuation of urinals
- For Geberit frames for urinal with front actuation
- For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
Spare Parts
Art. No. | Description |
241.934.00.1 | Geberit throttle |
241.933.00.1 | Geberit regulating screw |
241.931.00.1 | Geberit set of distance bolts (4 pc.) |
241.937.00.1 | Geberit pneumatic actuator with mounting frame |
242.811.11.1 | Flush plate type 01 for Geberit urinal flush control with pneumatic flush actuation: white alpine |
242.811.21.1 | Flush plate type 01 for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated |
242.811.46.1 | Flush plate type 01 for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated |
241.914.11.1 | Flush plate Tango for Geberit urinal flush control with pneumatic flush actuation: white alpine |
241.914.21.1 | Flush plate Tango for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated |
241.914.46.1 | Flush plate Tango for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated |
241.911.11.1 | Flush plate Samba for Geberit urinal flush control with pneumatic flush actuation: white alpine |
241.911.21.1 | Flush plate Samba for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated |
241.911.46.1 | Flush plate Samba for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated |
241.912.11.1 | Flush plate Bolero for Geberit urinal flush control with pneumatic flush actuation: white alpine |
241.912.21.1 | Flush plate Bolero for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated |
241.912.46.1 | Flush plate Bolero for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated |
241.913.FW.1 | Flush plate Mambo for Geberit urinal flush control with pneumatic flush actuation: stainless steel brushed |
241.915.KH.1 | Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated, matt chrome-plated |
241.915.KJ.1 | Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: white, gloss chrome-plated |
241.915.KK.1 | Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: white, gold-plated |
241.915.KL.1 | Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: white, matt chrome-plated |
241.915.KM.1 | Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: black, gloss chrome-plated |
241.915.KN.1 | Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated, gloss chrome-plated |
241.915.SN.1 | Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: brushed, polished |
242.764.00.1 | Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: customised |
242.764.11.1 | Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: white alpine |
242.764.DW.1 | Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: jet black RAL 9005 |
242.764.GH.1 | Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: brushed chrome |
242.764.SD.1 | Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: smoked glass reflective |
242.764.SE.1 | Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: satin glass / green |
242.764.SQ.1 | Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: umber |
241.947.00.1 | Geberit terminal with cover |
241.935.00.1 | Geberit pneumatic valve for urinal |
241.932.00.1 | Geberit basket filter |
241.936.00.1 | Geberit set of nozzles, white |
243.327.00.1 | Geberit flow regulator |
243.579.00.1 | Flow regulator 9 l/min, for Geberit urinal flush controls |
242.484.00.1 | Flow limiter for Geberit urinal flush control with electronic flush actuation or Geberit urinal flush control with pneumatic flush actuation |
242.156.00.1 | Bayonet joint set with lip seal, for Geberit urinal flush control |
Product Details
Art. no. | Material designation | Surface / Colour |
116.017.KH.1 | Plastic | Plate and button: gloss chrome-plated Design stripes: matt chrome-plated |
116.017.KJ.1 | Plastic | Plate and button: white Design stripes: gloss chrome-plated |
116.017.KK.1 | Plastic | Plate and button: white Design stripes: gold-plated |
116.017.KL.1 | Plastic | Plate: white Button: matt chrome-plated |
116.017.KM.1 | Plastic | Plate and button: black Design stripes: gloss chrome-plated |

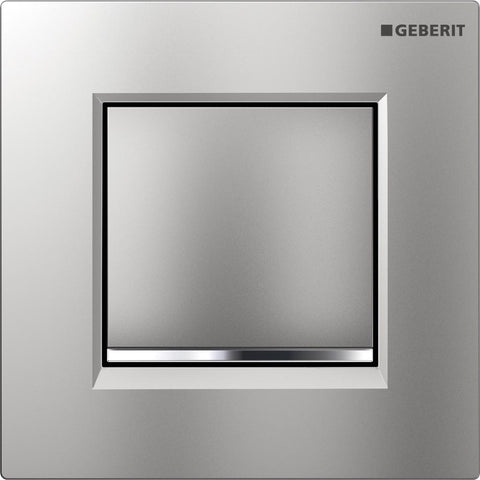

116.017.KN.1 | Plastic | Plate and button: matt chrome-plated Design stripes: gloss chrome-plated |
