by Geberit
Save £135.27
Original price
£1,114.27
Current price
£979.00
CODE: 115.856.SN.1
Description
Characteristics
- Touchless manual flush actuation
- Automatic flush actuation
- Touchless flush actuation for single or dual flush by moving hand toward sensor
- Manual flush actuation via flush plate
- Screwable flush plate
- Power supply via power supply unit
- External power supply unit
- Transformation of mains voltage to extra-low voltage, 4.1 V DC
- Operation with extra-low voltage, no mains voltage in cistern
- With push-fit connection with cross-polarity protection
- Infrared user detection with background fade-out
- Self-adjusting IR sensor
- Reliable IR distance detection
- Interval flush preset
- Adjustable interval flush
- Preflush can be set
- Minimum detection time can be set
- Compatible with Geberit Service Handy
- Functions can be set and queried with the Geberit Service Handy
- Flush actuation can be deactivated via Geberit Clean Handy
- Low-noise lifting mechanism
- Electrical lifting device, self-calibrating
- Vandal-resistant
- Easy maintenance and cleaning
Technical data
- Protection degree : IP45
- Nominal voltage : 85-240 V AC
- Mains frequency : 50-60 Hz
- Operating voltage : 4.1 V DC
- Interval flush, adjustment range : 1-168 h
- Interval flush, factory setting : 24 h
- Detection time, adjustment range : 1-60 s
- Detection time, factory setting : 7 s

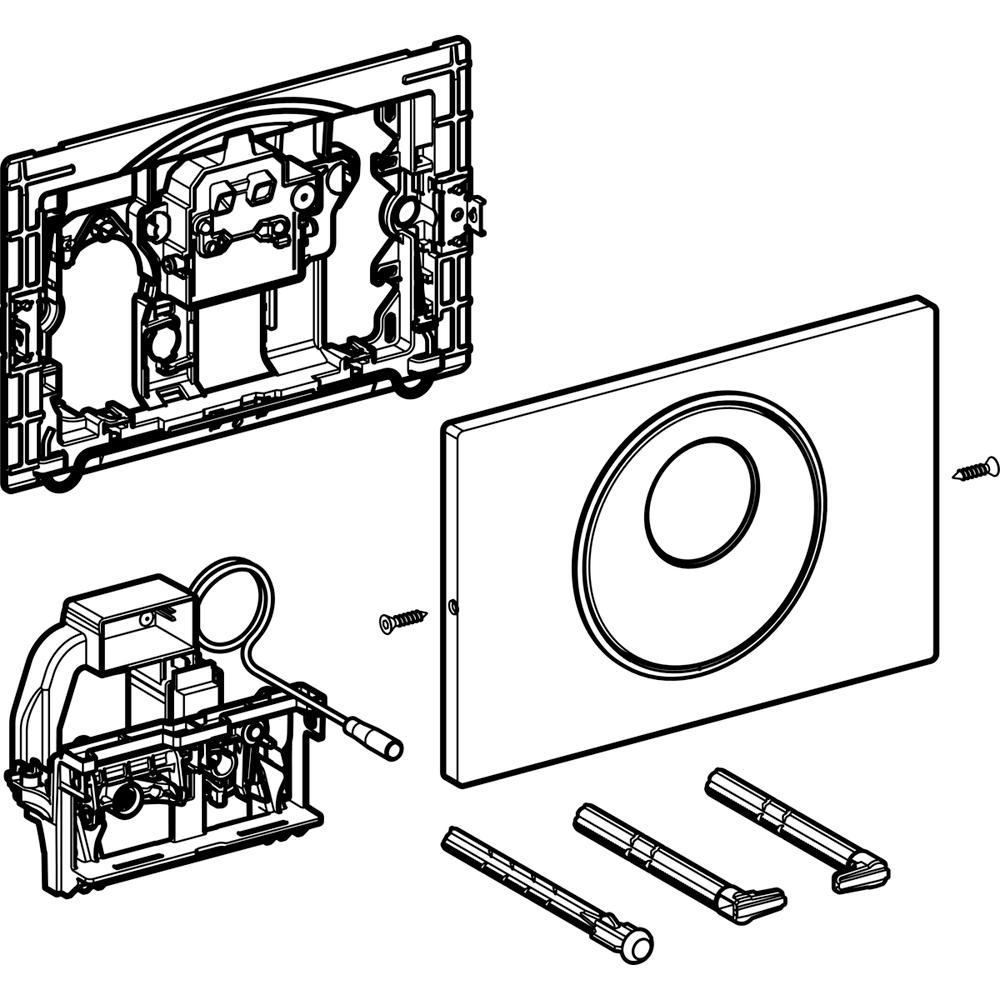

Scope of delivery
- Flush plate Sigma10
- Mounting frame with infrared control, premounted
- Protection plate
- Support block with servomotor and lifting device, premounted
- Actuator rod
- Fastening material
To order additionally:
- Installation set for Geberit WC flush controls with electronic flush actuation
Application purposes
- For Geberit Sigma concealed cistern 8 cm, series 2016
- For public and semipublic areas
- For solid and drywall construction
- Not suitable for use with Geberit inserts for in-cistern block
- Not suitable for less-abled installation
Spare Parts
Art. No. | Description |
115.861.00.1 | Installation set for Geberit WC flush controls with electronic flush actuation |
241.149.00.1 | Geberit power supply unit |
241.161.00.1 | Geberit cover for housing of electric socket |
241.302.00.1 | Geberit housing for electric socket, for power supply unit |
241.831.00.1 | Geberit extension for mains cable |
242.424.00.1 | Lifting device for Geberit WC flush control, electronic, for Geberit Sigma concealed cistern 8 cm |
243.356.00.1 | Electronic lifting device for Geberit Sigma concealed cistern 8 cm (from year of manufacture 2016) |
242.425.00.1 | Mounting frame for Geberit flush plate Mambo |
241.476.00.1 | Electronics module for Geberit WC flush control with electronic flush actuation |
241.477.00.1 | Flush plate Mambo for Geberit WC flush control with electronic flush actuation |
241.478.00.1 | IR window for Geberit WC flush control with electronic flush actuation |
242.781.SN.1 | Flush plate Sigma10 for Geberit WC flush control with electronic flush actuation: brushed, polished |
241.877.00.1 | Fastening set for Geberit flush plates Sigma (2 pc.) |
Product Details
Art. no. | Material designation | Surface / Colour |
115.856.SN.1 | Stainless steel | Plate and button: brushed Design ring: polished |
