NoMorePly TG4 Floorboard is a fully structural fibre cement flooring system, perfect for use internally and externally for commercial and non-commercial builds/renovations. It's also a great replacement for screed/timber floors as due to its fibre cement composition it can be left exposed to the elements. Typically used on any floor that's finished in titles: bathrooms, wet rooms, hallways and kitchens.

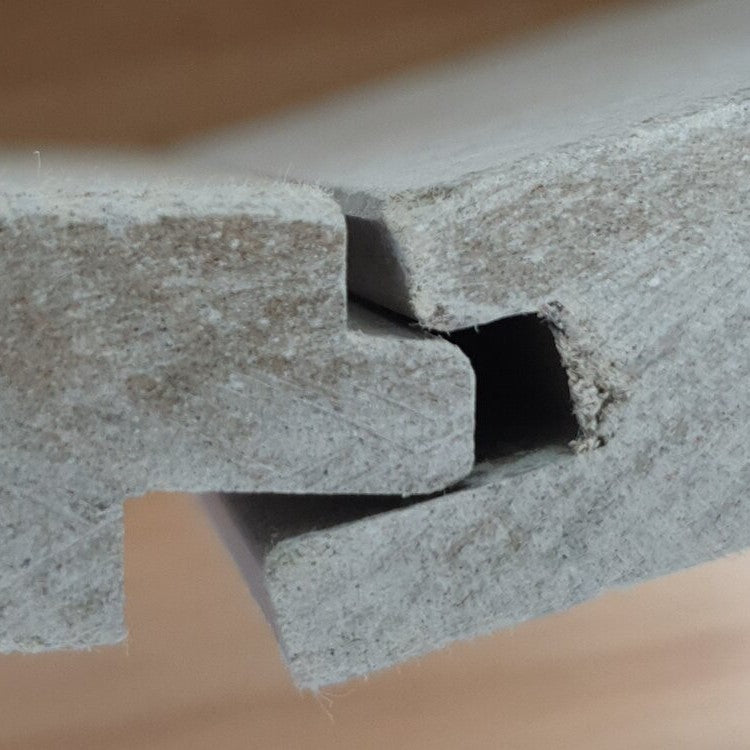

With four-sided tongue and groove, they slot together easily and, as board edges don’t have to fall onto joists, they can be laid quickly with fewer cuts and less material waste.
High density fibre cement is superior to chipboard. NoMorePly resists water, so it can stand on site without weather damage allowing site construction to continue regardless of bad weather.
NoMorePly boards absorb and release heat efficiently. They do not lose shape over time, so there is no risk of squeaks, making them compatible with all types of wet and electric underfloor heating systems.
- 22mm Thick – For New Floors or Refurbishment
- 1200 x 600mm (0.72m2) – Convenient One Man Lift
-
Tongue and Groove to 4 Sides – Less Waste, Quick to Fix
What's Included?
40 Boards x 22mm TG4 Fibre Cement Floor Boards - (0.72m2 Each)
Installation
1. Cut boards to size. Cut TG4 Tile Backer using a circular saw fixed with a vacuum extractor and a PCD Saw Blade. When cutting always use vacuum extraction with a suitable filter. This method will cut boards easily and reduce dust. Boards are fixed with board text facing up.
2. Stick boards to joists. TG4 Tile Backer can be fixed to timber or steel joists. These should be installed at maximum 600mm centres using 22mm and 450mm centres using 18mm. Apply a bead of Slow Set Mega Strength PU Adhesive to the joist and position the first board. The foil tubes are better for larger areas.
3. Secure with screws. Secure with 2 x 50mm NoMorePly Fibre Cement screws per joist. Ensure screws are placed a minimum distance of 25mm from the tongue and groove edge.

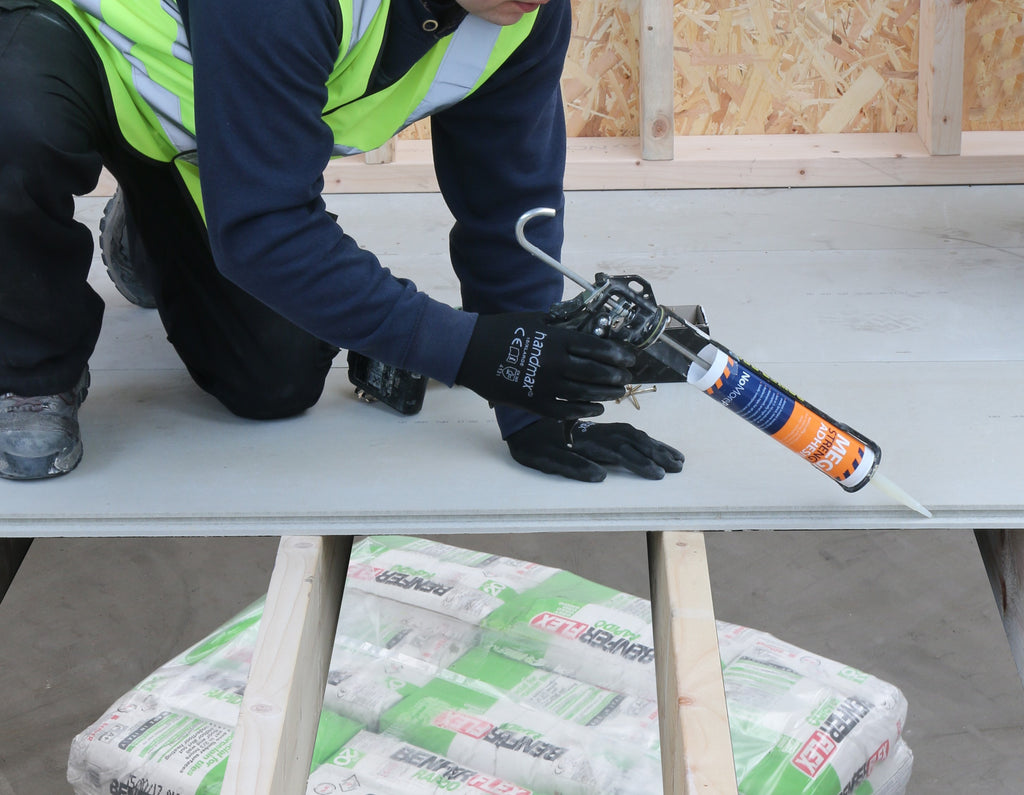

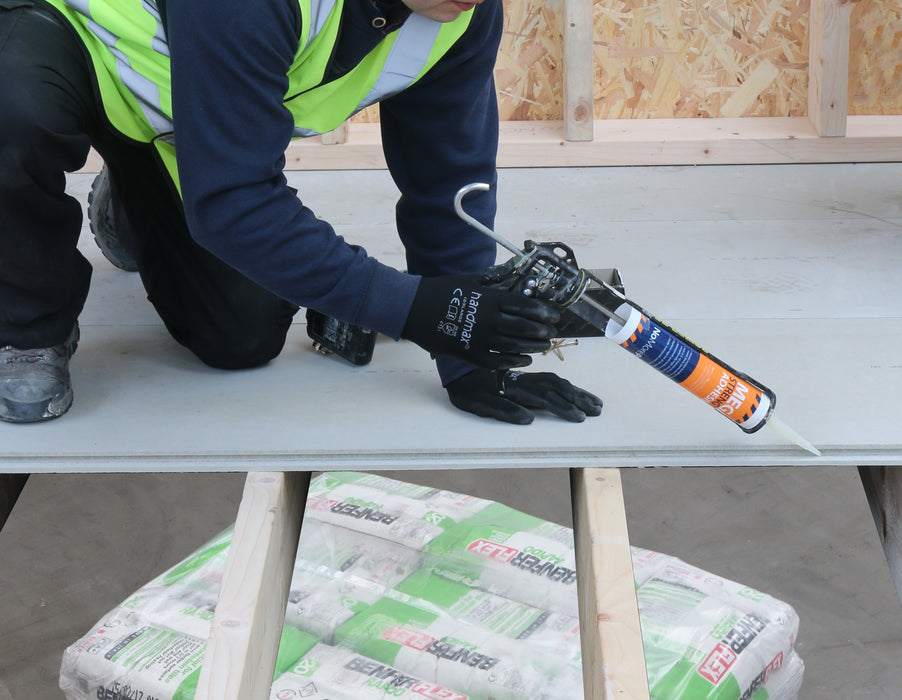

4. Apply adhesive to groove. Lay in a brick bond pattern. Tongue and groove joins do not need to end on a joist but all square edges should be fully supported. Secure subsequent boards by applying Mega Strength PU Adhesive. Apply along all sides of the T&G before inserting the next board. You are now ready to install other surfaces immediately.
Product Specifications
| Properties |
Units
|
Performance |
| Density |
Kg/m3 |
>1200 |
| Weight |
Kg/Board |
24.8 |
| Thickness |
mm |
22mm |
| Dimensions |
mm |
1200 x 600mm |
| Tolerance |
Thickness
Dimension
Weight
|
+/- 5%
+/- 1mm
+/- 5%
|
|
Mechanical
Characteristics
|
Units
|
Performance |
Modulus of Rupture EMC - Min
|
MPa or N/mm2
|
22mm = 10.91
|
Free Moisture Content
|
%
|
6
|
Water Absorption - Submersion after 22 Hrs
|
%
|
36
|
Lamina Bond Strength
|
MPa or N/mm2
|
0.9
|
| Tolerance |
Thickness
Dimension
Weight
|
+/- 5%
+/- 1mm
+/- 5%
|
Additional
Characteristics |
Units
|
Performance |
| Thermal Conductivity (K) (30°C Mean Temperature)
|
W/M k
|
0.172
|
pH Value
|
-
|
10.4
|
U Value
|
-
|
0.1279 Wm2k
|
Fire Rating
|
-
|
Class A1
|
Compression Strength
|
Min Requirement 30 MPa or N/mm2
|
22mm: 39.2
|
Downloads
Click For Technical Data Sheet
